How do you install ceiling spotlights on a sloped ceiling?

Standard recessed and surface-mounted spotlights are designed to be fixed to a flat, horizontal surface. On a sloped or vaulted ceiling, a conventional fitting will either sit at an angle, leave a visible gap around the rim, or direct its beam toward a wall rather than the floor below.

The steeper the pitch, the more pronounced this problem becomes. A ceiling with a 15-degree pitch may allow some adjustable fittings to compensate, but anything above 30 degrees typically requires a dedicated sloped-ceiling adapter or a surface-mounted fitting with a pivoting head.

Many homeowners fitting ceiling spotlights in rooms with A-frame roofs, loft conversions, or stairwells run into this issue. The solution depends on whether you are using recessed or surface-mounted fittings, and how much of the ceiling void is accessible for cabling.

Before purchasing anything, measure the pitch of your ceiling using a digital angle finder or a simple spirit level and protractor. Note whether the ceiling joists run parallel or perpendicular to the slope, as this affects where you can safely cut holes or fix backplates.

There are two main routes when choosing fittings for a sloped ceiling.

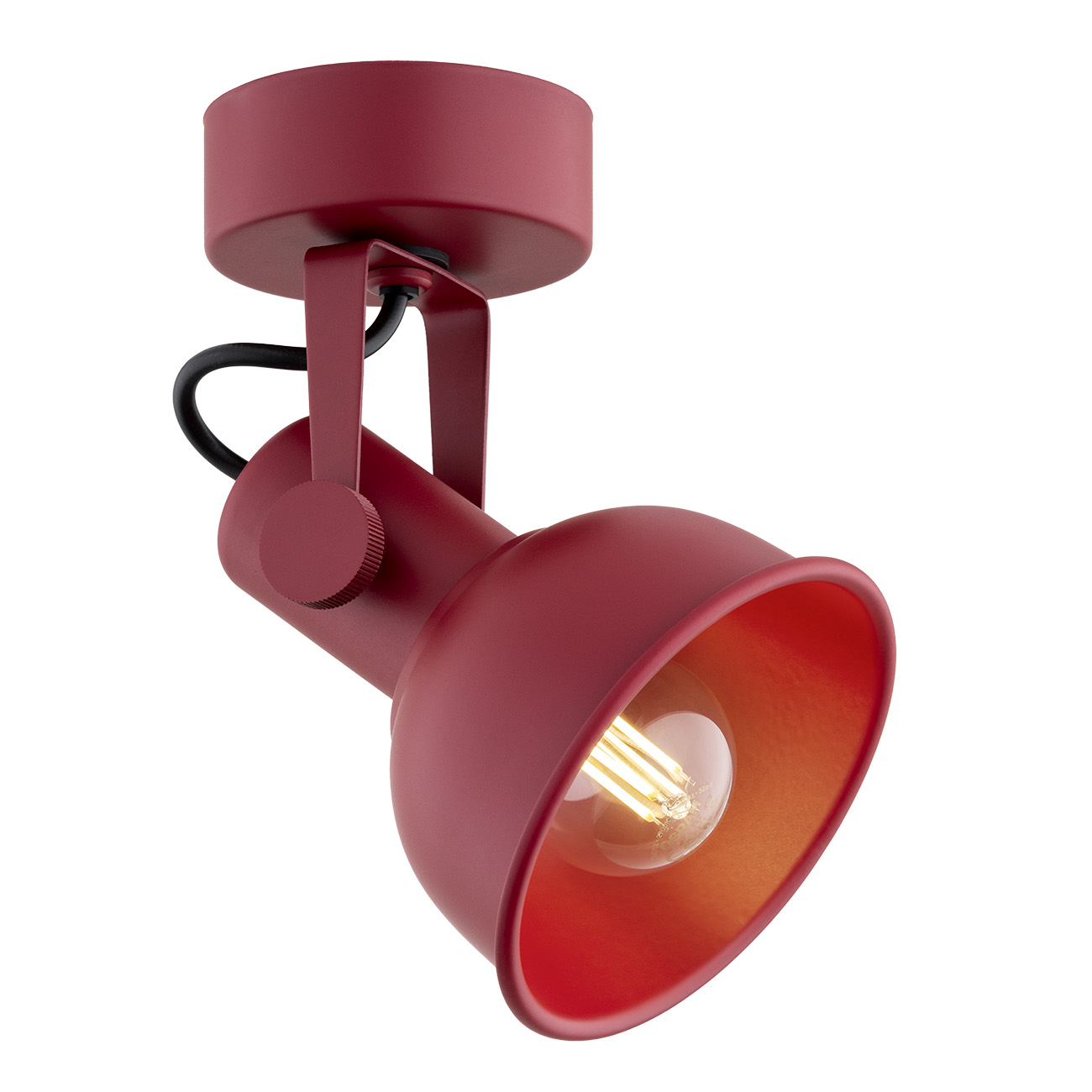

The first is a surface-mounted spotlight with a pivoting or swivel head. These fix directly to the ceiling surface via a backplate, so the angle of the ceiling is irrelevant — the head rotates independently to point the beam straight down or wherever you need it. Models such as the Nora adjustable spotlight are designed precisely for this application.

The second route is a recessed downlight paired with a sloped-ceiling trim or angled collar. These collars sit between the lamp housing and the ceiling surface, compensating for the pitch so the visible trim ring appears level. They are sold separately and are typically rated for pitches of up to 45 degrees.

Key considerations when choosing:

• Check the maximum pitch rating on any recessed collar before buying
• Confirm the GU10 or LED lamp inside can tolerate the angled orientation — most can, but some integrated LED modules specify horizontal or vertical installation only
• Surface-mounted fittings with adjustable heads generally offer more flexibility and are easier to reposition after installation
• For a clean, minimal look on a high-pitch ceiling, a cylinder downlight with a long neck gives clearance to angle the beam without the fitting looking awkward

Sloped ceilings in loft conversions and older properties often have limited ceiling void depth, which affects how cables are routed. Before cutting any holes or fixing any backplates, identify where the joists run and use a cable detector to locate any existing wiring.

In the UK, any new lighting circuit or significant alteration to an existing one is notifiable work under Part P of the Building Regulations. This means the work must either be carried out by a registered electrician or self-certified by a competent person scheme member. The NICEIC provides clear guidance on kitchens and electrics that applies equally to other rooms, including the rules around notifiable work and certification.

For surface-mounted fittings on a sloped ceiling, cables typically run inside the ceiling void and emerge through a small hole behind the backplate. The backplate itself must be fixed securely into a joist or into a noggin fitted between joists — never rely on plasterboard fixings alone for a fitting that will carry a lamp.

For recessed fittings, the ceiling void must be deep enough to accommodate the downlight housing. On a sloped ceiling this depth varies across the span, so measure at the exact point of each fitting before committing to a position.

Positioning spotlights on a flat ceiling is straightforward — equal spacing in a grid. On a sloped ceiling the geometry is more complex because the distance between the fitting and the floor changes as you move up the slope.

The practical approach is to plan your layout based on the floor area you want to illuminate, not the ceiling surface. Work out where you need light on the floor, then project those points up to the ceiling. A fitting near the apex of a steep pitch will be much further from the floor than one near the eaves, so the beam spread will be wider — factor this in when spacing.

For a typical loft room with a central ridge, two rows of spotlights running parallel to the ridge (one on each slope) usually gives better coverage than a single central row. Each fitting can then be angled slightly toward the centre of the room.

Electrical Safety First notes that parents and householders should always have lighting circuits checked by a qualified electrician before making changes, particularly in older properties where wiring may not meet current standards.

Use a laser level or chalk line to mark consistent horizontal rows across the slope before drilling, and double-check each mark against your joist positions before cutting.

Spotlight bars are a practical choice for sloped ceilings in rooms where you want to light a wide area from a single electrical connection. Because the bar mounts on a flat backplate and the individual heads pivot, the slope of the ceiling only affects the backplate angle — the heads themselves can be directed independently.

The key requirement is that each head must have sufficient tilt range to compensate for the ceiling pitch and still point the beam usefully. A bar with heads that tilt only 30 degrees may not be adequate on a ceiling pitched at 35 degrees, as the beam will still angle toward a wall.

When measuring for a spotlight bar on a sloped ceiling:

• Fix the backplate to a joist for maximum security, particularly on steeper pitches where gravity places more lateral stress on the fixing
• Choose a bar length that allows the outer heads to remain within the flat section of any ridge detail, rather than spanning the apex
• Check that the bar's cable entry point aligns with where your existing or planned cable will emerge from the ceiling

A two-light bar such as the Beryen oak spotlight bar, with its independently adjustable GU10 heads, is well suited to this application. The natural wood finish also works sympathetically with the exposed timber often found in loft conversions and rooms with vaulted ceilings.
